Construction
of intersection of a straight line and a plane using a projecting planeConstruction
of intersection of a straight line and a plane using a projecting plane –
The line p(p',p'') and the plane P(r1,r2)
are in oblique positions in space.
–Construct
the intersection point P = p ∩ P,
using a horizontal projecting plane
that passes through p.

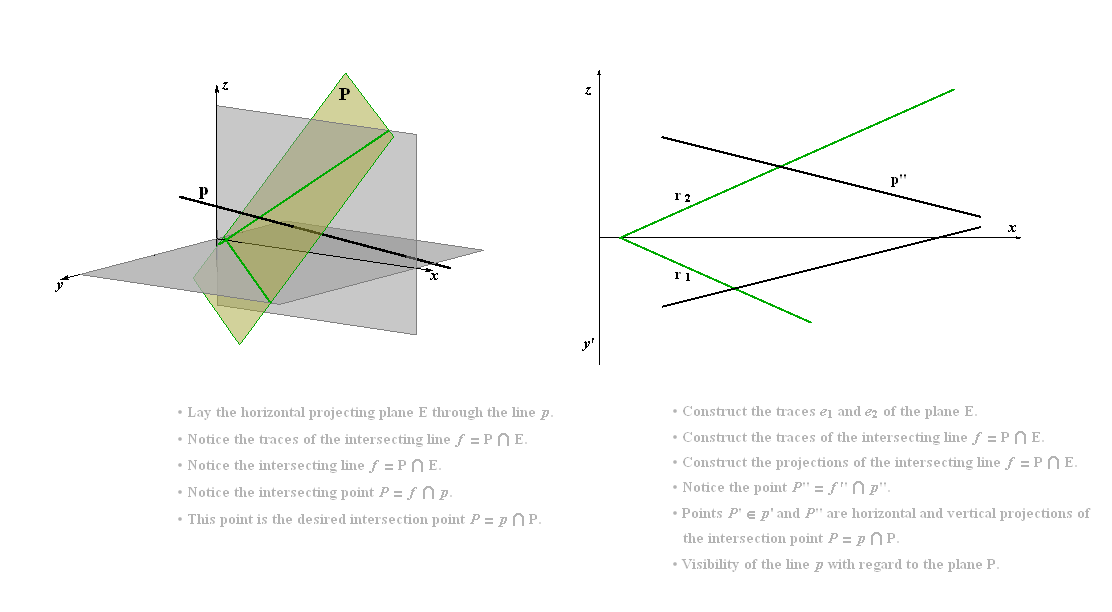

–Images
show this procedure. Click on the image to
see the next step of the construction.
Created by Sonja Gorjanc 3DGeomTeh - Developing project of the University of Zagreb.
Translated by Helena Halas and Iva Kodrnja.
