A natural terrain is called a topographical surface.

In the elevated topographical this surface depicted with horizontals, as same as the plane, i.e. with lines that have same elevation.

For the horizontal with the elevation 0 of a topographical surface it is usual to take the sea level.

The depiction of a topographical surface in program Rhino

A topographical surface will be always given on a template with its horizontals.
When making a model of a topographical surface (terrain) in program Rhino we will put its lowest horizontal at the elevation 10.

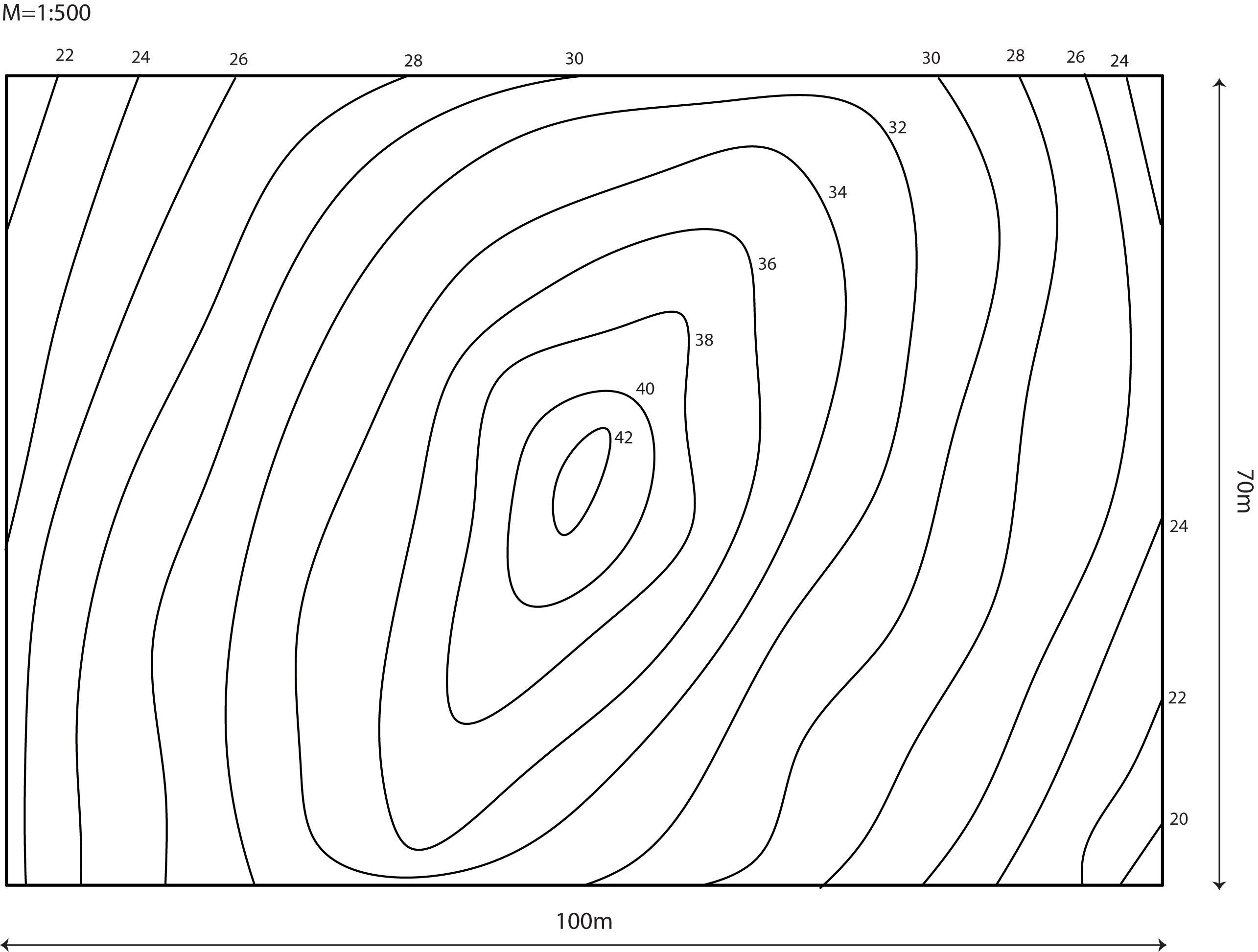

The topographical surface is given on the following template. Make a model of the terrain in program Rhino.

construction of the horizontals and making a model of the topographical surface

Created by Sonja Gorjanc, translated by Helena Halas and Iva Kodrnja - 3DGeomTeh - Developing project of the University of Zagreb
